Colored Laminated Glass We are engaged in offering our clients an outstanding array of Colored Laminated Glass which is widely used in hotels, office partitions, homes, airports and allied segments. Using advanced technology and quality materials, these are made in accordance to the International quality standards. Available in varied standard & customized specifications, these Colored Laminated Glass can be purchased by clients at reasonable costs.
Processing technique
Two layers of glass "sandwiched" together with a PVB interlayer, laminated glass is the one glass that reconciles the aesthetic benefits of glass with a genuine concern for safety; offering superior protection against glass breakage, as well as harmful solar rays and hazardous noise levels.
Due to the adhesive properties of the PVB, Rider takes careful precautions to prevent unwanted particles from attaching to the PVB during the adhesion process.
Benefits

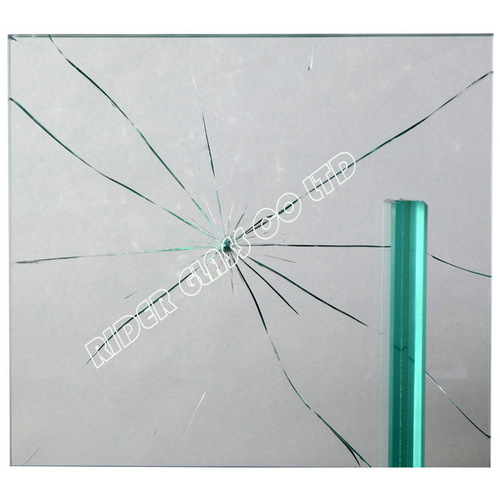

- Holds together when shattered. The PVB interlayer keeps the glass bonded, even when broken, resulting in a characteristic spider web cracking pattern across the glass.
- Cyclone resistant
- Superior UV blockage
- Excellent sound damping properties
- Low visible distortion
Colors
- Blue: Sky Blue; Lake Blue; Dark Blue; Royal Blue
- Grey: Euro Grey; Dark Grey, Mist Grey
- Green: F. Green (Light Green), Dark Green
- Bronze: Golden Bronze, Red Bronze
- Pink,
- Golden,
- Clear etc.
Thickness
- Glass: 3+0.38+3mm; 4+0.38+3mm; 5+0.38+5mm; 6+0.38+6mm; 4+0.76+4mm 5+0.76+5mm; 6+0.76+6mm;
- PVB Film: 0.38-1.9mm
Laminated Glass Performance Levels according to Thickness
|
Glass Characteristic
|
Thickness (mm)
|
UV Transmittance (%)
|
LT (%)
|
|
3+0.38+3mm Clear
|
6.38mm
|
5
|
89
|
|
6+0.38+6mm Clear
|
12.38mm
|
3
|
86
|
|
6+0.38+6mm Reflective
|
12.38mm
|
0.5
|
22
|
UV protection varies with thickness, reflective properties and color
Laminated Glass Assembly According to Safety Requirement
|
Requirement
|
Benefit
|
Glass Assembly
|
|
Solar control
|
Energy saving
|
2ply+1PVB interlayer
|
|
UV elimination
|
|
Sound control
|
Noise reduction
|
2ply+1PVB interlayer
|
|
Safety
|
Lowest injury risk
|
2ply+2PVB interlayers
|
|
Anti-bandit protection
|
2ply+4-6PVB interlayers
|
|
Security
|
Forced entry protection
|
3ply+4PVB interlayers
|
|
Bullet proof
|
Decide case by case, at least
|
|
Blast resistant
|
4ply+multi PVB interlayers
|
MOQ
1 FCL
Payment Terms
Within 15 days after deposit or L/C.
Applications
- External use of windows, doors, shopfronts in offices, houses, shops etc.
- Interior glass screens, partitions, balustrades etc.
- Shop display windows, showcases, display shelves etc.
- Furniture, table-tops, picture frames etc.
Rider Glass Advantages:
- We manufacture a wide range of glass to meet your different demands: Float glass, Tinted glass, Stained glass, Laminated glass, Mirror glass, Aluminum mirror, Silver mirror, Reflective glass, Online coated glass, Patterned glass, Figured glass, Wired glass, Colored glass, Tempered glass, Toughened glass, Safety glass, Shower doors glass, Emulsificated glass, Acid-etched glass, Obscure glass, Sandblasted glass, Solar glass, Ultra clear low iron glass, Low-E glass, Obscure glass, Glass block, Glass brick, Picture frame in different colors and sizes.
- 18 years' manufacturing experience.
- Six production lines to make sure of on time delivery, products will be shipped out within 15 days after deposit or L/C.
- Rider Glass ensures that you will receive the exact high quality glass you want at the most competitive prices.
- All the products are manufactured according to ISO9001:2000 and CE certificate, to make sure of perfect quality.
- Dockside warehousing in 3 of China's top 5 container ports ensures convenient loading and rapid delivery of Rider Glass.
- Wide assortment of colors and customization options make it even easier to make all your glass purchasing decisions from one supplier.
- We give each customer personalized, professional, and dedicated service.
- From order to delivery to after sales service, our devoted team of experienced sales professionals is always available to give prompt replies and service.
- No matter the requirement, at Rider Glass we are always at your service.
|
